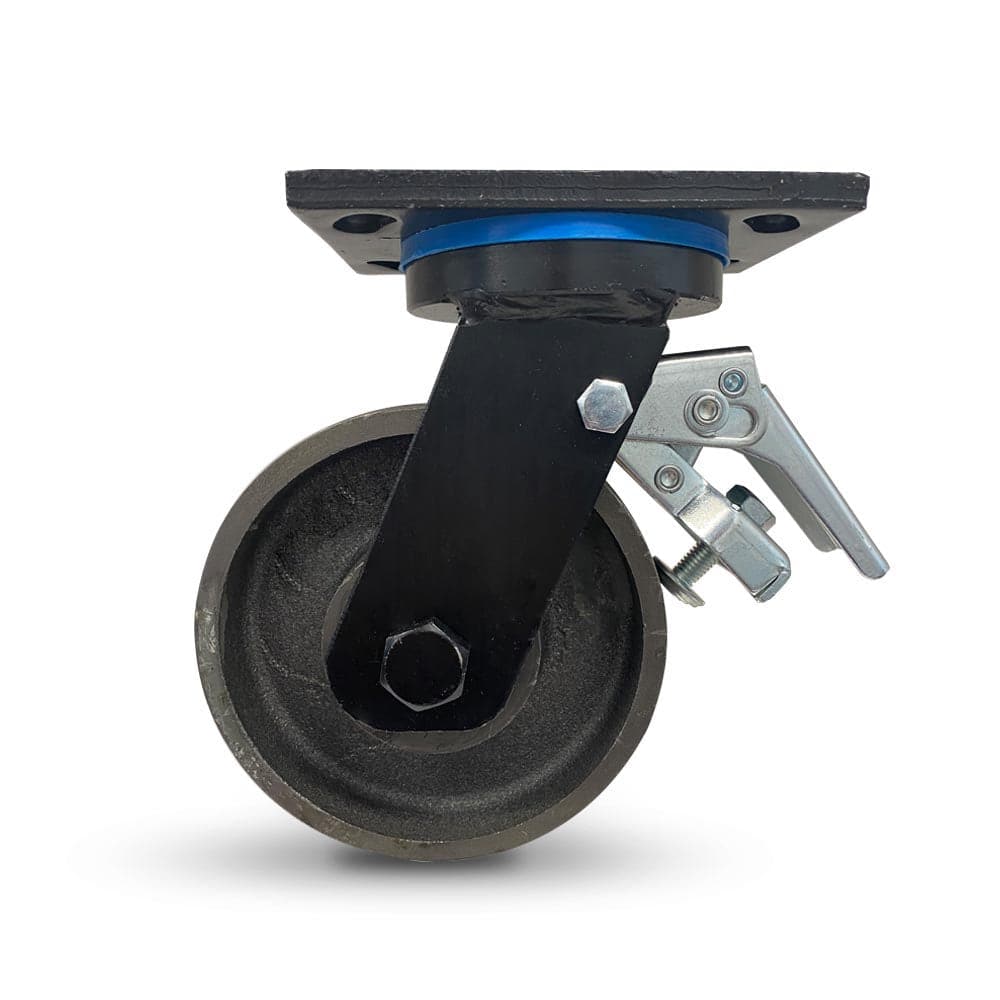

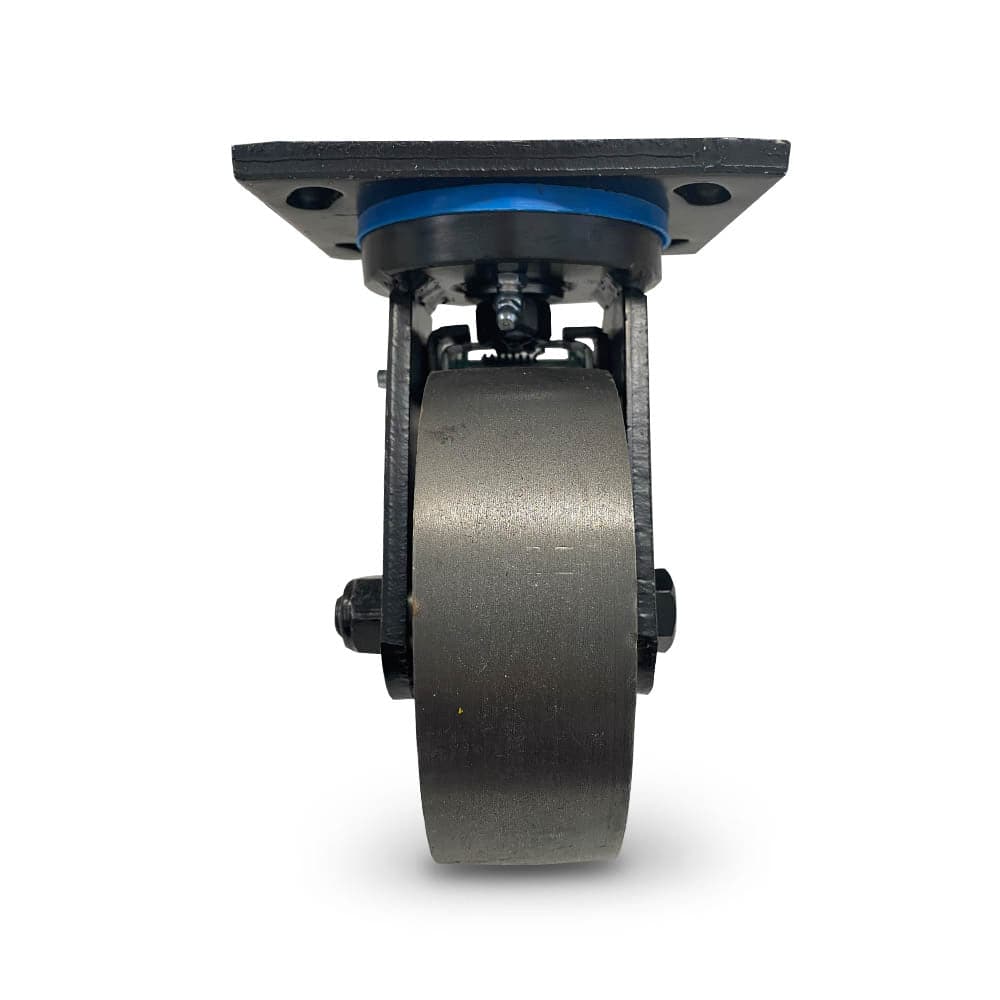

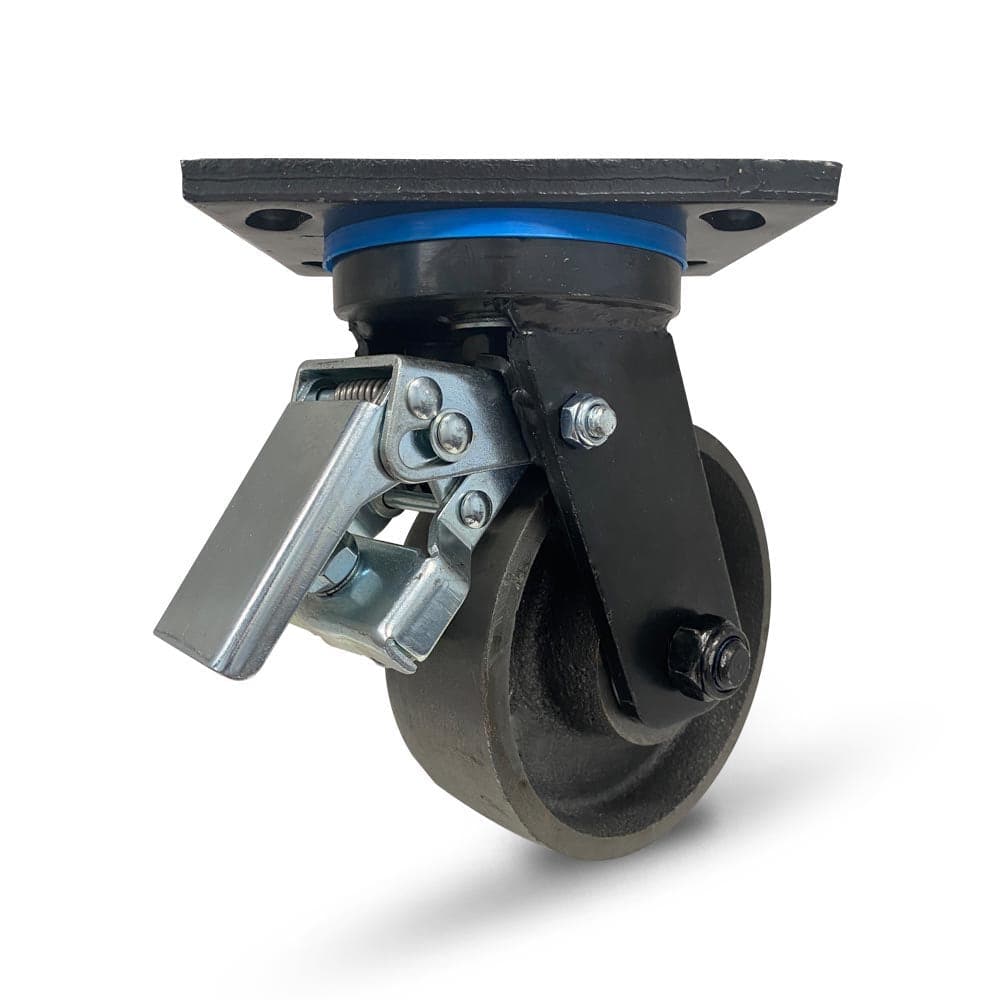

GRIP INDUSTRIAL AAA GREY SERIES
EXTREME HEAVY DUTY fabricated steel componentry with black zinc finish for corrosion resistance. Full cast iron, double ball bearing core centered wheel. Suitable for use on automotive assembly lines, aviation trolleys and in production manufacturing plants.
Specifications:
- Diameter: 150x50mm
- Load Cap. 1400kg
- Height: 206mm
- Offset: 43

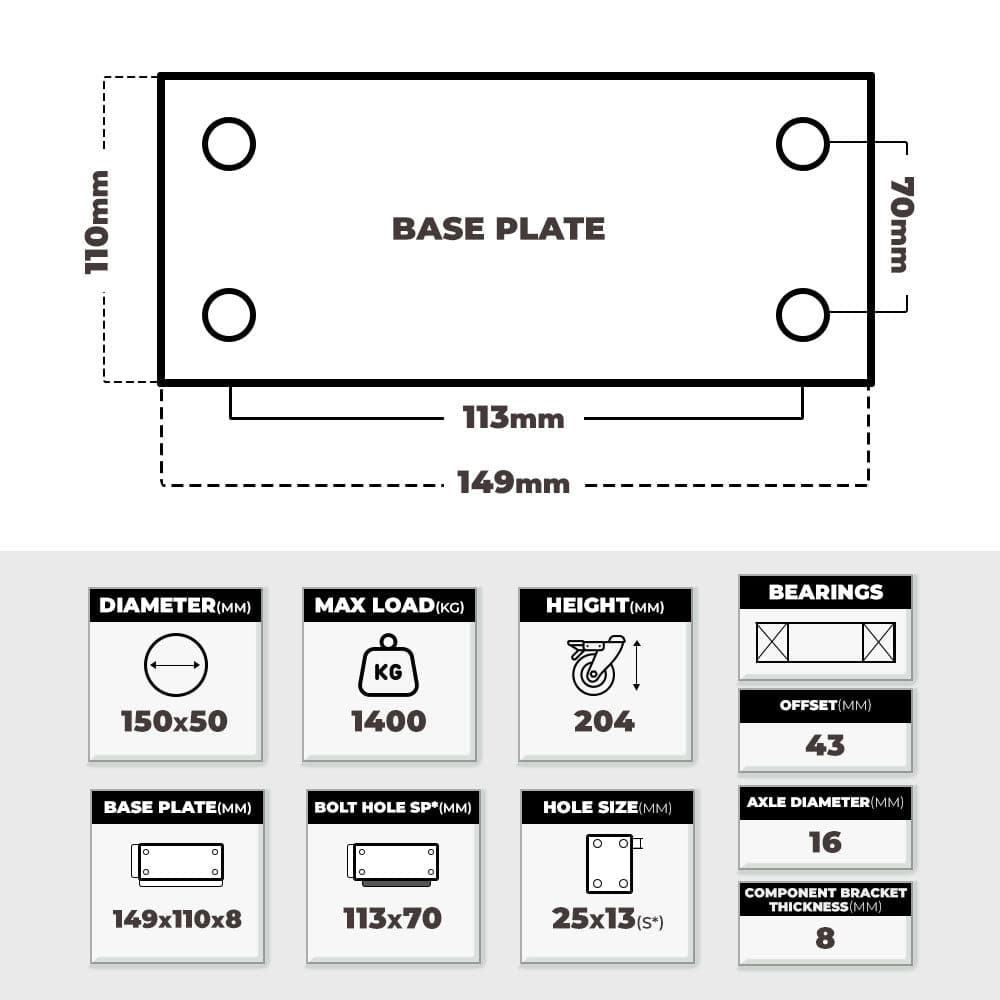

- Base Plate: 149x110x8mm
- Bolt Hole Spacing: 113x70mm
- Hole Size: 25x13mm (Slotted Hole)
- Axle Diameter: 16
- Component Bracket Thickness: 8mm
